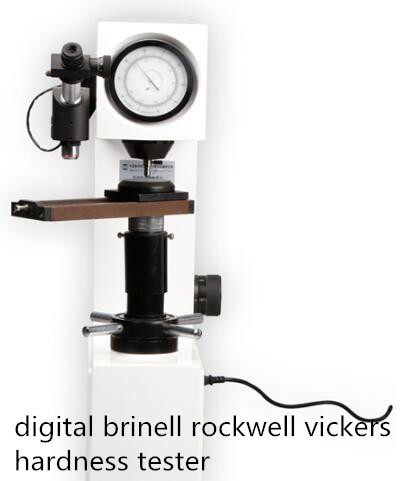

187.5 Micro Manual universal Brinell Rockwell Vickers Hardness Tester price/Durometer

HBRV-187.5 Micro Manual universal Brinell Rockwell Vickers Hardness Tester price/Durometer

Applications:
It serves the purpose of measuring the hardness of ferrous, non-ferrous metals, hard metals, carburized layers and chemical treated layers.
The Universal version enables the execution of Rockwell standard(150-60-100kgf) Brinell (31.25-62.5-187.5kgf)and Vickers tests (10-30-60-100kgf).
The microscope together with the instrument allows fast and reliable measurements of Brinell and Vickers indentations both in the analogue and digital version.The digital version permits to determine the hardness value in the fast and easy way.

Specifications:
Preliminary test force(N): 98
Rockwell hardness test (N): 588, 980.7, 1471 (HRA, HRB, HRC)
Brinell hardness test (N): 294.2, 306.5, 612.9, 980.7, 1839(HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW10/100, HBW2.5/187.5)
Vickers hardness test( N): 294.2, 980.7( HV-30, HV100)
Magnification of microscope: 37.5X,75X:
Duration time: 2-60s
Max height of specimen(mm): 170mm for Rockwell; 140mm for Brinell and Vickers
Max depth of Throat (mm): 165
Dimensions(mm): 520X215X700
Power Supply: AC220V 50/60Hz
Net weight(kg): 90
