JBS-300B 300J/150J Touch Screen

Digital Pendulum Charpy Impact Strength Testing Machine

1.Application


JBS-300B  Digital  Display Metal Impact Testing Machine  is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories


2. Standards:

ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007

3. Main Technical Specifications:

Model

JBS-300B

JBS-500B

JBS-800B

impact energy

150/300J

250/500J

500/800J

The distance between the

pendulum shaft and impact point

750mm

800mm

800mm

Impact speed

5.2m/s

5.4 m/s

5.9m/s

Pre-rising angle of the pendulum

150°

Specimen bearer span

40+0.2mm

Round angle of the jaw

R1-1.5mm

Round angle of impact edge

R2-2.5mm,R8±0.05mm

Angle accuracy

0.1°

Standard specimen dimension

10mm×10(7.5/5)mm×55mm

Power supply

3phs, 380V, 50Hz Or 220V,60Hz

Dimensions (mm)

2124 x 600 x 1340

2200 ×650 ×1960

2450 x 1200 x 2455

Net Weight (kg)

450

650

2300

4. Features:

4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;

4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.

4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.

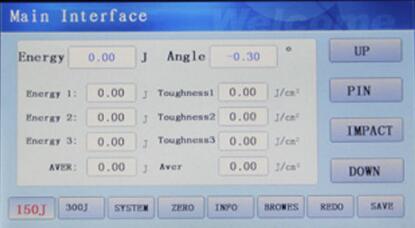

4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.

4.5 Built-in micro printer to print test result.

5. Configurations:

5.1 Main unit----------1 set

5.2 Pendulum

JBS-300B

JBS-500B

JBS-800B

150J/300J--2 pcs

250J/500J--2 pcs

500J/800J--2 pcs


5.3 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=12mm)---1 pc
5.9 Anchor bolts (M16x300mm)---4 pcs


5.10 Impact testing security guards----1 pc

5.11 Touching screen control panel/ PC software

JBS-300B 300J/150J Touch Screen Digital Pendulum Metal Impact Tester

Digital Pendulum Charpy Impact Strength Testing Machine


For more information of impact testing machine,please kindly contact with us .
