  • Product description: manual type pendulum impact testing machine can be used to measure the impact resisting performance of the material.
  • INQUIRY

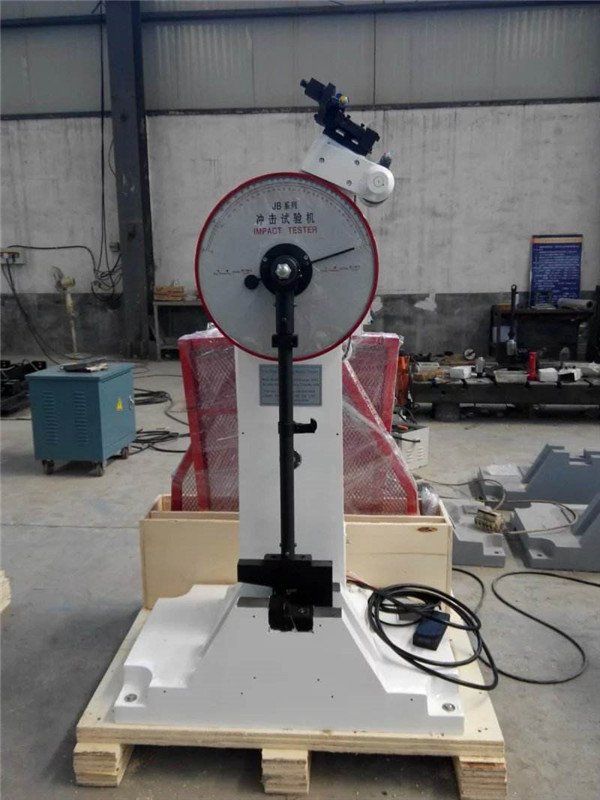

JB-800B manual impact test machine

Application:


This kind of JB-800B manual impact test machine is used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. It is designed according to national standard GB/T3808 “Charpy Impact Test Method for Metals”
It is also accordance with international standard ISO148, EN10045 and ASTM E23. It has the features of easy operation, high efficiency, safe and reliable. The machine is especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.


Specifications JB-300 JB-300B JB-500B JB-800B
Impact energy (J) 150, 300 150, 300 300, 500 500, 800
Impact velocity (m/s) 5 5.2 5.4 5.9
Raised angle (º) 135 150
Standard span (mm) 40
Round angle of jaws (mm) R1-1.5 R1-1.5
Round angle of striking edge (mm) R2-2.5 R2-2.5
Size of specimen (mm) 10 x 10 x 55 10 x 10 x 55
Power supply Manual, no power 3phs, 380V, 50Hz or 220V,60Hz
Dimensions (mm) 1000 x 630 x 1520 2124 x 600 x 1340 2144 x 736 x 1390 2450 x 1200 x 2455
Net Weight (kg) 320 450 650 2300





For more information of impact testing machine,please kindly contact with us .
