ZT-VU1 Manual special Cutting Machine for Notch of Impact Specimen

V-Notch Machine

Main applications:
This machine is designed for providing the specimens used in the impact testing tasks.

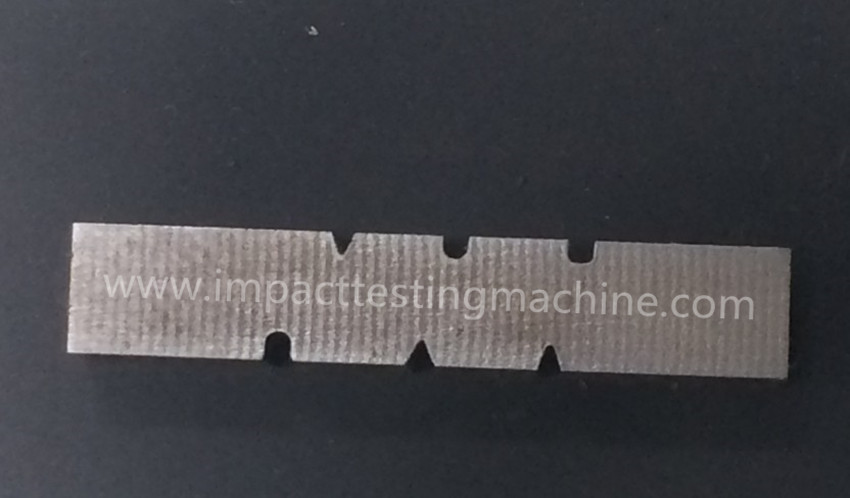

The machine cut notch which according to the “V” ASTM E23, ISO148 standards, “U” DIN
50115 and ISO83 standards “ Charpy notch Impact Test Method for metal material” on the
specimen for only one time. At the same time, it has advantages of high precision, long life, low
noise and concise appearance etc.
Specification:
Notch type: V type: 2mm.
Notch types: U type: 2mm.
Size of Specimen: 10mm x 10(7.5 or 5)mm x 55mm
Travel of cutting knife: 350mm
Cutting speed: 2.5m/Min
Dim: 350mm x 350mm x 700mm
Weight: 100kG
