  • Product description: charpy impact strength test machine,The Charpy impact strength test, or Charpy v-notch test, is a high strain rate test used to determine the amount of energy a material can absorb when impacted
  • INQUIRY

charpy impact strength test

1. Application & Features:

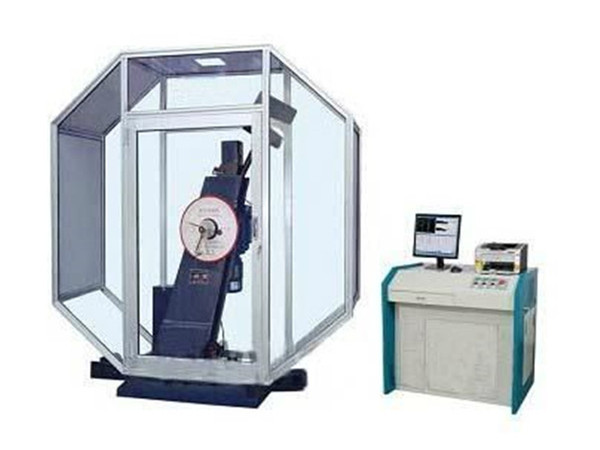

JB-B series impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. They have the features of easy operation, high efficiency, safe and reliable. The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

Impact testing machines are designed to measure the resistance to failure of a material to a suddenly applied force.
2. Standards:
JB-B series impact testers are strictly designed according to the standards ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.

3. Main Technical Specifications:

Specifications

JB-300B

JB-500B

JB-750B

Impact energy (J)

150,300

250,500

500,750

Impact velocity (m/s)

5.2

5.4

5.9

Raised angle

150º

Standard span (mm)

40

Distance between pendulum rotating center and specimen center (mm)

750

Round angle of jaws (mm)

R1-1.5

Round angle of striking edge (mm)

R2-2.5 or R8

Size of specimen (mm)

10 x 10 x 55

Power supply

3phs, 380V, 50Hz/60Hz or Specified by users

Dimensions (mm)

2124 x 600 x 1340

2144 x 736 x 1390

2450 x 1200 x 2455

Net Weight (KG)

450

650

2300

Standard Accessories:
1. Big Pendulum (300J/500J): 1 pc
2. Small Pendulum (150J/250J): 1 pc
3. Span specimen plate (L = 40mm): 1 pc
4. Specimen centering plate (L = 40mm)(U, V): 1 pc
5. Detacher: 1 pc
6. Simple-head spanner (S=30mm): 1 pc
7. Inner-hexagon spanner (S=12mm): 1 pc
8. Anchor bolts (M16x300mm): 4 pcs
9. Grips (including support) (R=1mm): 1 pair
10, Touching screen control panel/ PC software & PC
Our Services
Our after-sale services:
1,One year guarantee of the whole machine
2, 24 hours techonical support by e-mail
3, calling or door-to-door service
4, use friendly English software, use manual or detailed videos/CD

charpy impact machine tester

charpy impact test units

charpy impact strength test  machine,The Charpy impact strength test, or Charpy v-notch test, is a high strain rate test used to determine the amount of energy a material can absorb when impacted

universal pendulum impact testing machine are designed in accordance with all International test standards for Izod, Charpy, Tension and Puncture impact .

Being a professional impact tester suppliers ,we have below advantage :

For more information of universal pendulum impact testing machine,please kindly contact with us .
