- Product description: charpy machine in china
charpy machine
1.Application of charpy machine:
JB-C Semi-automatic charpy impact test machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2.Features of charpy machine:
2.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test.
2.2 Standard dual-stage reducer mention hammer, smooth operation.
2.3 Hanging pendulum device using buffer device, hanging pendulum steady.
2.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
2.5 Shock knife with screw mounting, easy replacement.
2.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.
3.Technical Specifications of charpy machine:
Model | JB-300C | JB-450C | JB-600C | JB-750C |
Control Method | Electric Control | |||
Max. Impact Energy | 300 J | 450 J | 600 J | 750 J |
Impact Speed | 5.24 m/s | |||
Pre-rising Angle Of The Pendulum |
150° | |||
Angle Accuracy | ±0.1° | |||
Specimen Bearer Span | 40 mm | |||
Round Angle Of The Jaw | R 1.0~1.5 mm | |||
Round Angle Of Impact Edge | R 2.0~2.5 mm (Special Order: R8±0.05 mm) | |||
Thickness Of Impact Knife | 16 mm | |||
The Distance Between The Pendulum Shaft And Impact Point |
750 mm | |||
Standard Specimen Dimension | 10 * 10 (7.5 or 5) * 55 mm | |||
Pendulum | 300 J, 1 PC | 450 J, 1 PC | 600 J, 1 PC | 750 J, 1 PC |
Dimensions | 2200*800*2100 mm | |||
Net Weight | 750 KG | |||
Power Supply | Three-phase Four-wire System 380V, 50Hz |
5.10 Impact testing security guards----1 pc
5.11 Touching screen control panel/ PC software

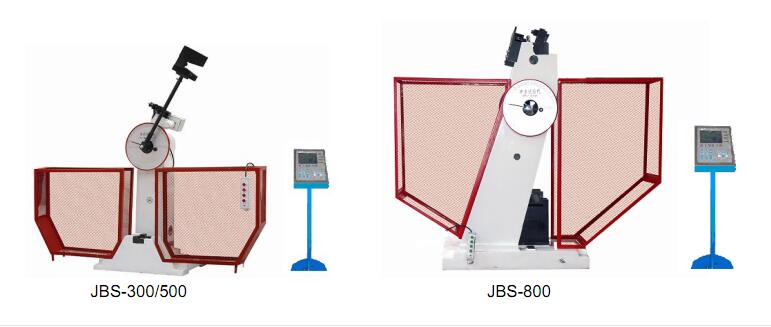

JBS-300B 300J/150J Touch Screen Digital Pendulum Metal Impact Tester
charpy impact test requirements ? if you want to know detail of charpy impact test requirements ,please keep me inform.let me do send more information to you .
Please kindly confirm the impact testing machine model ,quantity,and your port (if possible) .let me do quote a CIF charpy impact test machine price for your reference .
Welcome your inquiry .
