charpy v notch impact test machine

1.Application of charpy v notch impact test machine:

JB-C Semi-automatic charpy v notch impact test machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.

2.Features of charpy v notch impact test machine:
2.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test.
2.2 Standard dual-stage reducer mention hammer, smooth operation.
2.3 Hanging pendulum device using buffer device, hanging pendulum steady.
2.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
2.5 Shock knife with screw mounting, easy replacement.
2.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.

3.Technical Specifications ofcharpy v notch impact test machine:
Model JB-300C JB-450C JB-600C JB-750C
Control Method Electric Control
Max. Impact Energy 300 J 450 J 600 J 750 J
Impact Speed 5.24 m/s
Pre-rising Angle Of The
Pendulum
150°
Angle Accuracy ±0.1°
Specimen Bearer Span 40 mm
Round Angle Of The Jaw R 1.0~1.5 mm
Round Angle Of Impact Edge R 2.0~2.5 mm (Special Order: R8±0.05 mm)
Thickness Of Impact Knife 16 mm
The Distance Between The
Pendulum Shaft And Impact
Point
750 mm
Standard Specimen Dimension 10 * 10 (7.5 or 5) * 55 mm
Pendulum 300 J, 1 PC 450 J, 1 PC 600 J, 1 PC 750 J, 1 PC
Dimensions 2200*800*2100 mm
Net Weight 750 KG
Power Supply Three-phase Four-wire System 380V, 50Hz


charpy v notch impact test machine

5.10 Impact testing security guards----1 pc

5.11 Touching screen control panel/ PC software

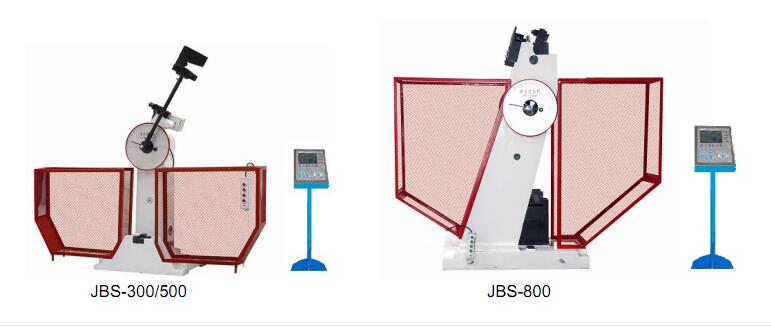

JBS-300B 300J/150J Touch Screen Digital Pendulum Metal Impact Tester

charpy impact test requirements ? if you want to know detail of charpy impact test requirements ,please keep me inform.let me do send more information to you .

Please kindly confirm the charpy v notch impact test machine model ,quantity,and your port (if possible) .let me do quote a CIF charpy impact test machine price for your reference .

Welcome your inquiry .
