CST-50 Optical Notch Inspector – Precision Gap Analysis for Impact Testing‌

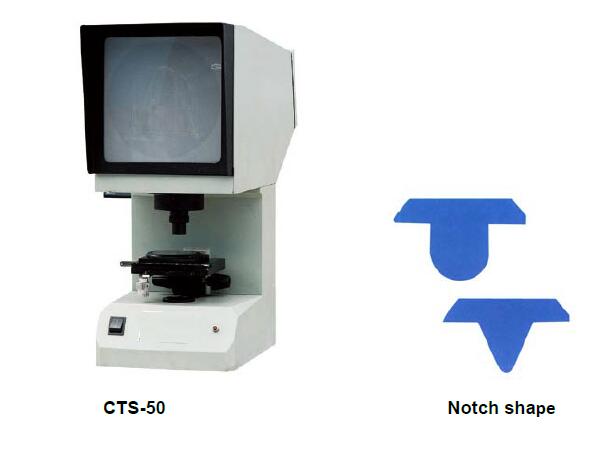

The CST-50 Impact Specimen Gap Projector is a specialized optical inspection system designed for ‌high-accuracy profiling of U/V-shaped notches‌ in Charpy impact test specimens. Ideal for metallurgical labs and QC departments, this projector magnifies notch geometries ‌50X‌ onto a 180mm screen, enabling rapid compliance checks with ‌ASTM E23, ISO 148‌, and global impact testing standards.

‌Key Features:‌

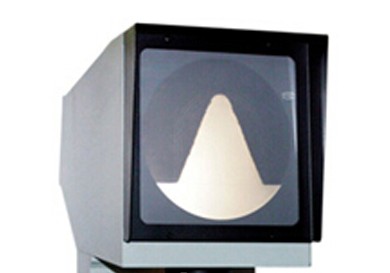

✅ ‌Dual Notch Analysis:‌ Projects crisp 50X magnified profiles of ‌U-notch (2mm depth) and V-notch (5mm depth)‌ specimens.

✅ ‌Multi-Axis Precision:‌ Adjustable XYZ stage (±10x±10x±12mm travel) with 360° rotary table for full-profile inspection.

✅ ‌Industrial-Grade Optics:‌ 2.5X objective lens + 2.5X projection lens for distortion-free imaging (3.8mm eye-field).

✅ ‌Plug-and-Play Operation:‌ 12V/100W tungsten lamp ensures bright, consistent illumination for fast visual inspections.

✅ ‌Compact & Portable:‌ 515×224×603mm footprint (20kg) suits lab benches or workshop environments.

‌Technical Specifications:‌

‌Magnification:‌ 50X (2.5X + 2.5X lens system)

‌Stage Types:‌ 110×125mm square / Ø90mm rotary

‌Working Distance:‌ 22.89mm

‌Compliance:‌ ASTM E23, ISO 148, GB/T 229

‌Dimensions:‌ 515×224×603mm | Weight: 20kg

‌Applications:‌

Verify ‌Charpy impact specimen notch geometry‌ in metallurgy, automotive, and pressure vessel manufacturing.

Replace manual gauges with ‌direct optical comparison‌ for QC documentation.

Train technicians using real-time ‌magnified notch profiles‌ (180mm screen).
