  • Product description: pendulum impact charpy testers for resilience tests
  • INQUIRY

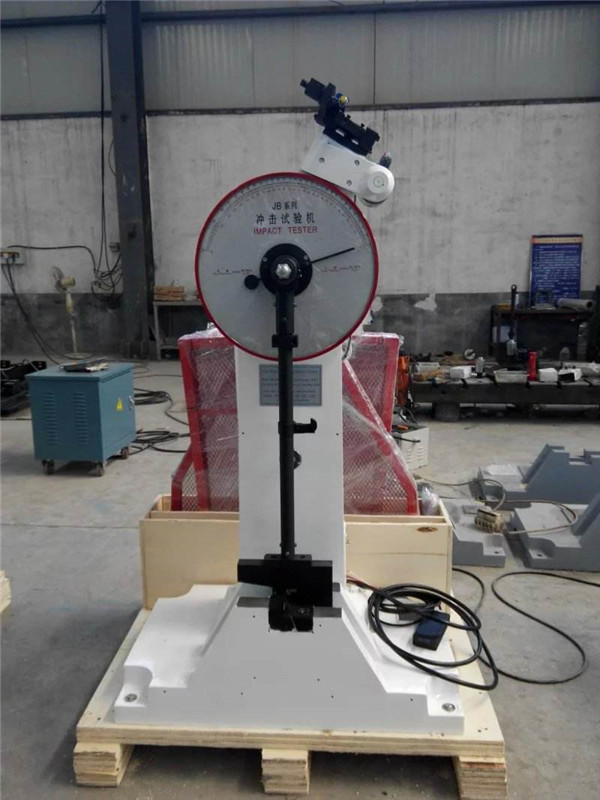

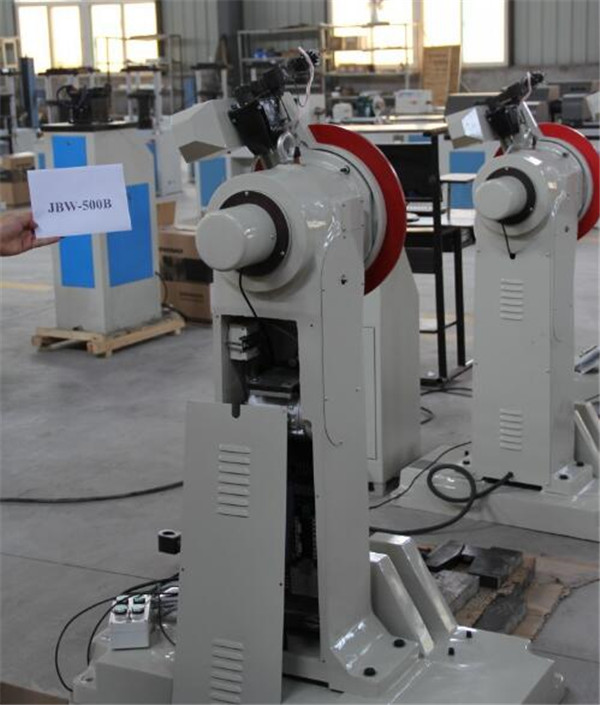

pendulum impact charpy testers for resilience tests

1. Application & Features of impact testing machines manufacturers:
JB-B series impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. They have the features of easy operation, high efficiency, safe and reliable. The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

Impact testing machines are designed to measure the resistance to failure of a material to a suddenly applied force.

types of impact tests: pendulum and drop weight

2. Standards:
JB-B series impact testers are strictly designed according to the standards ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.

3. Main Technical Specifications:

Specifications

JB-300B

JB-500B

JB-750B

Impact energy (J)

150,300

250,500

500,750

Impact velocity (m/s)

5.2

5.4

5.9

Raised angle

150º

Standard span (mm)

40

Distance between pendulum rotating center and specimen center (mm)

750

Round angle of jaws (mm)

R1-1.5

Round angle of striking edge (mm)

R2-2.5 or R8

Size of specimen (mm)

10 x 10 x 55

Power supply

3phs, 380V, 50Hz/60Hz or Specified by users

Dimensions (mm)

2124 x 600 x 1340

2144 x 736 x 1390

2450 x 1200 x 2455

Net Weight (KG)

450

650

2300

Standard Accessories:
1. Big Pendulum (300J/500J): 1 pc
2. Small Pendulum (150J/250J): 1 pc
3. Span specimen plate (L = 40mm): 1 pc
4. Specimen centering plate (L = 40mm)(U, V): 1 pc
5. Detacher: 1 pc
6. Simple-head spanner (S=30mm): 1 pc
7. Inner-hexagon spanner (S=12mm): 1 pc
8. Anchor bolts (M16x300mm): 4 pcs
9. Grips (including support) (R=1mm): 1 pair
10, Touching screen control panel/ PC software & PC
Our Services
Our after-sale services:
1,One year guarantee of the whole machine
2, 24 hours techonical support by e-mail
3, calling or door-to-door service
4, use friendly English software, use manual or detailed videos/CD



For more information of impact testing machine,please kindly contact with us .
